2004 Honda Civic Cabin Air Filter Replacement
Replacing the cabin air filter is one of the most neglected yet easy-to-do maintenance items that car owners should do. It’s probably neglected because cars used to not have cabin air filters, and auto repair shops want to charge an arm-and-a-leg to replace them. The cabin air filter itself is fairly cheap.
Don’t want to read my ramblings? Jump to the how-to installation steps below!
Cabin air filters differ from the other air filter (which is also normally easy to replace) in that it filters the air in the cabin rather than the air for the engine. The cabin is where you, the driver, are, so it’s filtering the air you breathe. And this filter can get downright dirty and disgusting - I’ve seen pictures online with mold growing on them.
My wife’s car is a 2004 Honda Civic that she’s owned for a year. Her previous car, a 1998 Honda Civic, didn’t have a cabin air filter (the US version didn’t due to a disagreement among the manufacturers). I was curious if it was dirty, so I checked it. Thankfully, it wasn’t moldy, but it was full of leaves and other particulates.
The dirty cabin air filters.
I bought an ACDelco brand cabin air filter on Amazon for around ten bucks. There’s two in a package - which is good because the car actually uses two.
The ACDelco Cabin Air Filter still in the package.
Amazon had an option to have it installed for $150, which I guess is the going rate for shops? Of course, I didn’t choose that, but I would LOVE to know how to be the one to install cabin air filters for $150 a pop!
The car is a seventh-generation Honda Civic, meaning that this process should be similar, if not exact, for the following model years:
- 2001 Honda Civic
- 2002 Honda Civic
- 2003 Honda Civic
- 2004 Honda Civic
- 2005 Honda Civic
In fact, this cabin air filter sits in a very common location for cabin air filters - behind the glove box - so the process will be similar for a huge slew of cars beyond a seventh generation Civic, a Civic, or even a Honda.
The closed glove box.
Onto the steps
1. Open the glove box.
The open glove box.
2. Remove stuff from the glove box and set aside.
3. The glove box has glove box stoppers/retainers on either side that need to be removed to fully open the glove box. Remove these by pinching the tabs on the outside of the side of the glovebox while it’s opening, then sliding them forward and through the larger opening.
The glove box stopper, still attached, from inside the glove box.
The glove box stopper, still attached, from outside the glove box.
The glove box stopper out of the glove box. Both are identical, so you don’t need to worry about putting them back on the same side.
4. Fully open the glove box. If you skipped step 2, the stuff in the glove box is probably now on the floor.
5. Open the door to the cabin air filter. The latch is on the left side. The door will fully come out.
The cabin air filter door closed.
The cabin air filter door removed.
6. Slide the first cabin air filter straight out.
7. Slide the second cabin air filter to the left, then pull it straight out.
8. Remove the cabin air filters from their frame. Discard the old cabin air filters.
The cabin air filter frames with no cabin air filter.
9. Put the new cabin air filters into their frames. Make sure they’re positioned correctly with respect to airflow (air flows down). Ensure that the end fins of the cabin air filters go into the slots at either end of the frames, otherwise, there will be a gap for particulates to get through.
Slot locations for the end fins of the cabin air filter.
Writing on the side of the cabin air filter indicating the direction of air flow.

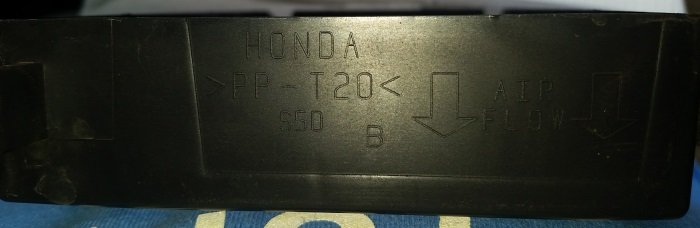

Writing on the side of the cabin air filter frame indicating the direction of air flow.
10. Installation is the reverse of removal.
That last step is my favorite - it’s the same for so many things!
3 comments for 2004 Honda Civic Cabin Air Filter Replacement
This is an interesting post! I never knew you could replace a cabin air filter. Now I wonder if my vehicle has one. I will have to check it out!
Reply to This Thread
I have installed filters opposite to air flow now they are stuck with frame how to remove it again so i can put them correctly
If you just put the filter in wrong, you should just be able to take them out and turn them around. Although if it’s been awhile, I’d suggest getting new filters because there’s probably a build up of dust and dirt on one side that would end up being pushed into the system.
If you somehow put the whole plastic holder thing in wrong so that it got jammed in there, you’re probably just going to have to try to force it out. It might break things - hopefully just the plastic holder thing. If the plastic holder thing is broken, you can find a new one. It looks like it’s part number 80295-SDA-A00 or 80290-SDA-A01.
